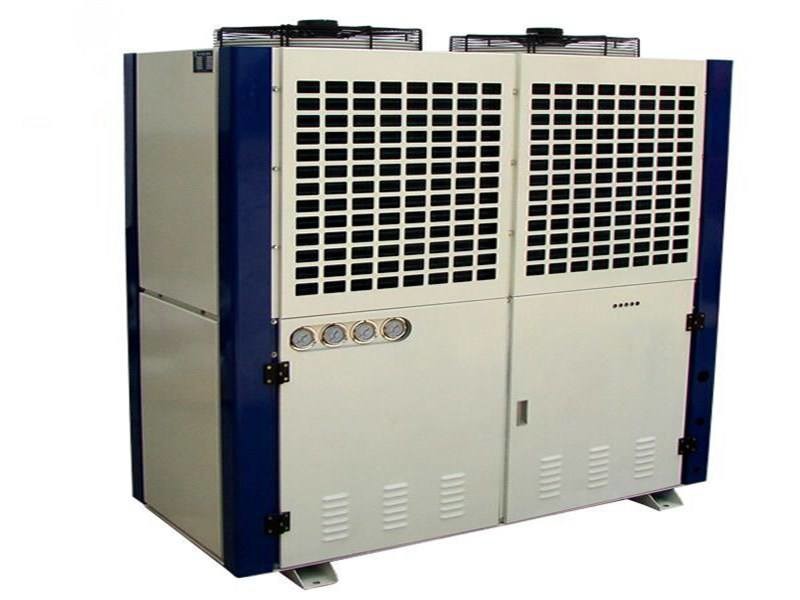

    8HP 15HP Copeland Box Type Air Cooled Condensing Unit For Cold Room 3PH 50HZ

    Ask Lasest Price
    Brand Name : Copeland semi-hermetic
    Model Number : 8-15HP
    Certification : CE / CCC
    Price : negotiate
    Payment Terms : T/T
    Supply Ability : 500 sets per month
    Delivery Time : 4-6 weeks
    • Product Details
    • Company Profile

    8HP 15HP Copeland Box Type Air Cooled Condensing Unit For Cold Room 3PH 50HZ

    Copeland Box Type Air-Cooled Condensing Unit,For Freezer Room -15~5℃, Cold Storage


    Compressor:Copeland scroll ZB series

    Capacity:8-15HP

    Refrigerant:R22/R404a

    Voltage:380V/3PH/50HZ

    Low noise, Energy saving, Easy installation,Copeland scroll compressor


    Description

    This series products with copeland scroll hermetic compressor and control box,applicable to cold display cases, cold storage rooms, ice producers etc. The applicable temperature ranges are: -5℃~ 15℃, -15℃~5℃ and -15~-20℃. They can be widely used in hotels, restaurants, medicines, agricultural, chemicals industries all other place where cold storage is needed.


    Features

    1. Electric components :main control board, cold room temp control board and operation board.

    2. With multi protections :phase protection, phase lack, over current, too constant start of compressor, discharge temp and system high/low temp.

    3. With fan speed regulator, to adjust condensing fan according to condensing temp.

    4. With operation data display function, to check operation current of compressor, discharge temp. and condensing temp.

    5. With system alarm function. When fault effects, the system will make alarm beep sound to remind user.

    6. The operation board can show temp. setting, defrosting control, operation system data checking and cold room temp. alarm functions. It can be installed apart from condensing units for remote control.


    Model

    8HP

    9HP

    10HP

    13HP

    15HP

    Room temperature

    -15℃ ~5 ℃

    Power supply

    380V/3Ph/50 HZ

    Compressor model

    ZB58KQE

    ZB66KQE

    ZB76KQE

    ZB95KQE

    ZB114KQE

    Condenser

    Fan Qty

    1

    1

    1

    2

    2

    Fan Voltage(V)

    220

    220

    220

    220

    220

    Fan Input(W)

    550

    550

    550

    460×2

    460×2

    Capacity. & input

    Te -5℃

    Cap(W)

    15300

    17100

    20400

    25000

    29700


    Input (W)

    6360

    7090

    8290

    10700

    12650

    Te -10℃

    Cap(W)

    12400

    14000

    16600

    20300

    24000


    Input (W)

    6320

    7050

    8220

    10600

    12650

    Te-15℃

    Cap(W)

    9480

    11300

    13350

    16100

    18900


    Input (W)

    6320

    7020

    8150

    10600

    12650

    Te-20℃

    Cap(W)

    7520

    9000

    10550

    12200

    14350


    Input (W)

    6360

    6980

    8100

    10600

    12650

    pipe

    Gas dia. (mm)

    φ28

    φ28

    φ28

    φ28

    φ28

    Liquid dia. (mm)

    φ16

    φ16

    φ16

    φ16

    φ16

    Overall sizes

    L (mm)

    967

    967

    967

    1354

    1354

    W (mm)

    825

    825

    825

    825

    825

    H (mm)

    1035

    1035

    1035

    1025

    1025


    8HP 15HP Copeland Box Type Air Cooled Condensing Unit For Cold Room 3PH 50HZ

    8HP 15HP Copeland Box Type Air Cooled Condensing Unit For Cold Room 3PH 50HZ
