    Pisto EVR Solenoid Valve

    Ask Lasest Price
    Brand Name : Original
    Model Number : EVR series
    Certification : CE/ROHS/FCC/SGS
    Price : negotiate
    Payment Terms : T/T
    Supply Ability : 2000pcs per weeks
    Delivery Time : 4-6 weeks
    • Product Details
    • Company Profile

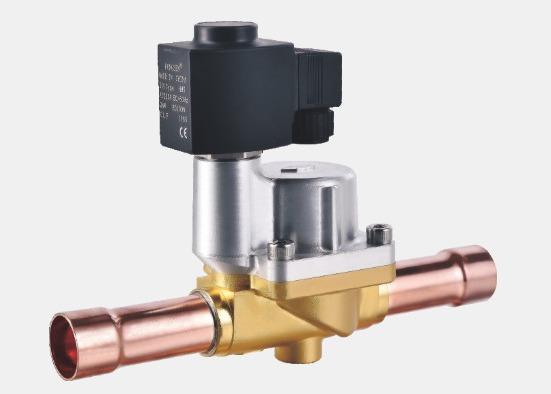

    Pisto EVR Solenoid Valve

    HVH Piston Twice Open-Type Solenoid Valve Of Refrigeration / Air Conditioning System,For Refrigeration Unit


    Description:


    ·Model HVH piston type solenoid valve is a twice open-type solenoid valve to be suitable to one-way flow.


    ·Model HVH piston type solenoid valve is used on the liquid, air suction and hot vapor pipes of the refrigeration, cold storage and air conditioning facilities.


    ·The coil of varies voltages is available for Model HVH piston type solenoid valve with a universal valve body.


    ·Model HVH piston type solenoid valve could be supplied in whole or in split, that means valve body and coil could be supplied separately.


    Specifications:


    ModelSize△P(bar)Max Operating Pressure(bar)Kv(㎥/h)
    Weld ConnectionMin.MOPD LiquidMOP
    HVD251-1/8ODF0.2314510
    HVD321-3/8ODF0.2314516
    HVD401-5/8ODF0.2314525

    1) Kv value: The flow rate (m³/h) of water of density 1t/m³ passing through the solenoid valve with the pressure differential of 100 KPa.

    2) The MOPD of gaseous medium is about 1 bar higher than that of liquid.


    ModelNominal Refrigerating Capacity kW
    LiquidAir SuctionHot Vapor
    R22/R407CR134aR404A/R507R22/R407CR134aR404A/R507R22/R407CR134aR404A/R507
    HVD25201.0186.0141.022.8016.3020.4092.3073.2075.30
    HVD32322.0297.0255.036.5026.1032.60148.00117.00120.00
    HVD40503.0464.0351.057.0040.8051.00231.00183.00188.00

    The working condition the nominal refrigerating capacity of liquid and air suction is as follows:


    Evaporation Temperature: te = -10℃;

    Liquid Temperature before Valve: t1 = +25℃;

    Pressure Drop after Solenoid Valve: △P = 15KPa


    The working condition the nominal refrigerating capacity of hot vapor is as follows:

    Condensation Temperature: tc = +40℃;

    Pressure Drop after Solenoid Valve: △P = 80KPa;

    Hot Vapor Temperature: th = +65℃;

    Liquid Refrigerant Overcooding: △t = 4K


    Technical Parameters:


    Applicable Refrigerants:HCFC or HFC(Customer apecified)
    Applicable Medium Temperature:-30℃~+105℃
    Application Ambient Temperature of Solenoid-40℃~+65℃
    Standard Voltage of SolenoidAC 380V,AC 220V/50Hz(Customer design is available)
    Allowable Voltage Fluctuation for Solenoid+10%~15%
    Connection of SolenoidStandard 3-wire insert connector
    Pisto EVR Solenoid Valve
    Should you have any question, feel free to contact.
