    10x10 Stem 1.6MPa Motorised Ball Valve DDF Series Refrigeration Service Valves

    Ask Lasest Price
    Brand Name : Original
    Model Number : DDF series
    Certification : CE/ROHS/FCC/SGS
    Price : negotiate
    Payment Terms : T/T
    Supply Ability : 2000pcs per weeks
    Delivery Time : 4-6 weeks
    • Product Details
    • Company Profile

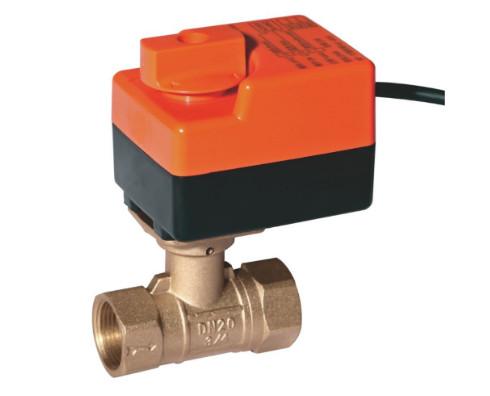

    10x10 Stem 1.6MPa Motorised Ball Valve DDF Series Refrigeration Service Valves

    Motorised Ball Valve For Refrigeration / Air Conditioning System, Condensing Unit, Refrigeration Unit


    DQF-A*DQQ-A -Product parameters


    Main material: forging brass body, seal PTFE / HNBR

    Actuator torque: 2N.m

    Valve opening torque: <1N.m

    Nominal pressure: 1.6MPa

    Working medium: water

    Fluid temperature 5~95℃

    Stem size: 10x10


    Specification

    Order
    No.
    ModelValve
    type
    DNThread
    size
    KvsMaximum
    differential
    pressure

    kPa

    Demension
    LH
    15000DQF-A-220*DQQ-AK3-2202-way20G3/49.56007443.5
    15002DQF-A-220*DQQ-AK2-2202-way20G3/49.56007443.5

    Instruduction of selection



    NO.Code definitionoption and interpretation
    Motorized ball valve body seriesDQF
    Valve body series codeA = Development sequence
    Valve type2 = two-way valve
    Valve size20=DN20
    Motorized ball valve actuator seriesDQQ
    Actuator series codeA = Development sequence
    Control modeK2 = two-wire, on/off K3 = three-wire, on/off
    Input power24AC=24VAC,220=220VAC

    Product parameDQF-B Series- Product parameters

    ● Main material: forging brass body, seal PTFE / HNBR
    ● Valve opening torque:
    DN15~DN25<1N.m,DN32~50<2N.m
    ● Nominal pressure: 1.6MPa ● Working medium: water
    ● Fluid temperature 5~95℃ ● Stem size: 10x10


    Technical data

    ModelDQQ-B1DQQ-B2DQQ-B3DQQ-E2-10
    Rated stroke90°90°90°90°
    Rated thrust2N.m10N.m5N.m10N.m
    Order No.ModelValve TypeDNthread
    size
    KvsdemensionMaximum
    differential
    pressure
    (KPa)
    Maximum
    differential
    pressure
    (KPa)
    最Maximum
    differential
    pressure
    (KPa)
    Maximum
    differential
    pressure
    (KPa)

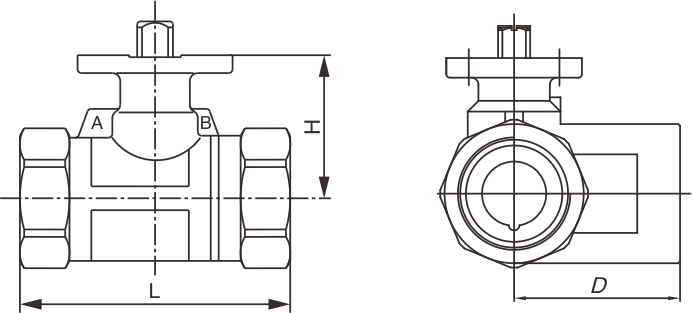

    LHD
    15579DQF-B-2152-way15G1/25.66039-600-600-
    15580DQF-B-215A2-way15G1/21.26039-600-600-
    15581DQF-B-215B2-way15G1/22.56039-600-600-
    15582DQF-B-215C2-way15G1/23.66039-600-600-
    15583DQF-B-215D2-way15G1/24.66039-600-600-
    15584DQF-B-2202-way20G3/49.56744-600-600-
    15585DQF-B-220A2-way20G3/41.56744-600-600-
    15586DQF-B-220B2-way20G3/42.36744-600-600-
    15587DQF-B-220C2-way20G3/44.56744-600-600-
    15588DQF-B-220D2-way20G3/46.56744-600-600-
    15589DQF-B-220E2-way20G3/4206636-600-600-
    15590DQF-B-2252-way25G19.58947-500-500-
    15591DQF-B-225A2-way25G123.58142.5-500-500-
    15592DQF-B-2322-way32G1-1/41598.552.5---500-
    15721DQF-B-232A2-way32G1-1/4368996.8---500-
    15593DQF-B-2402-way40G1-1/22410657--500-500
    15594DQF-B-2502-way50G24212362--400-400
    15595DQF-B-3153-way15G1/25.6603930.5600-600-
    15596DQF-B-315A3-way15G1/21.2603930.5600-600-
    15597DQF-B-315B3-way15G1/22.5603930.5600-600-
    15598DQF-B-315C3-way15G1/23.6603930.5600-600-
    15599DQF-B-315D3-way15G1/24.6603930.5600-600-
    15600DQF-B-3203-way20G3/49.5674432600-600-
    15601DQF-B-320A3-way20G3/41.5674432600-600-
    15602DQF-B-320B3-way20G3/42.3674432600-600-
    15603DQF-B-320C3-way20G3/44.5674432600-600-
    15604DQF-B-320D3-way20G3/46.5674432600-600-
    15605DQF-B-3253-way25G113894746.5500-500-
    15606DQF-B-3323-way32G1-1/41598.552.549--500-
    15607DQF-B-3403-way40G1-1/2241065752-500-500
    15608DQF-B-3503-way50G2421236269-400-400

    Note: DN15~DN20 ball valve, A:KV1.6, B:KV2.5, C:KV4.0, D:KV6.3, E: full diameter.DN25~DN50,without letters: indicates without guide vane.
