    Donghae VAS stainless steel Suction Vibration Eliminator Refrigeration System Components

    Ask Lasest Price
    Brand Name : Donghae
    Model Number : VAS series
    Certification : CE / UL
    Price : negotiate
    Payment Terms : T/T
    Supply Ability : 2000pcs per week
    Delivery Time : 4-6 weeks
    • Product Details
    • Company Profile

    Donghae VAS stainless steel Suction Vibration Eliminator Refrigeration System Components

    Vibration Eliminators For Refrigeration System,Condensing Unit,Refrigeration Unit,Cooling Equipments


    Description:

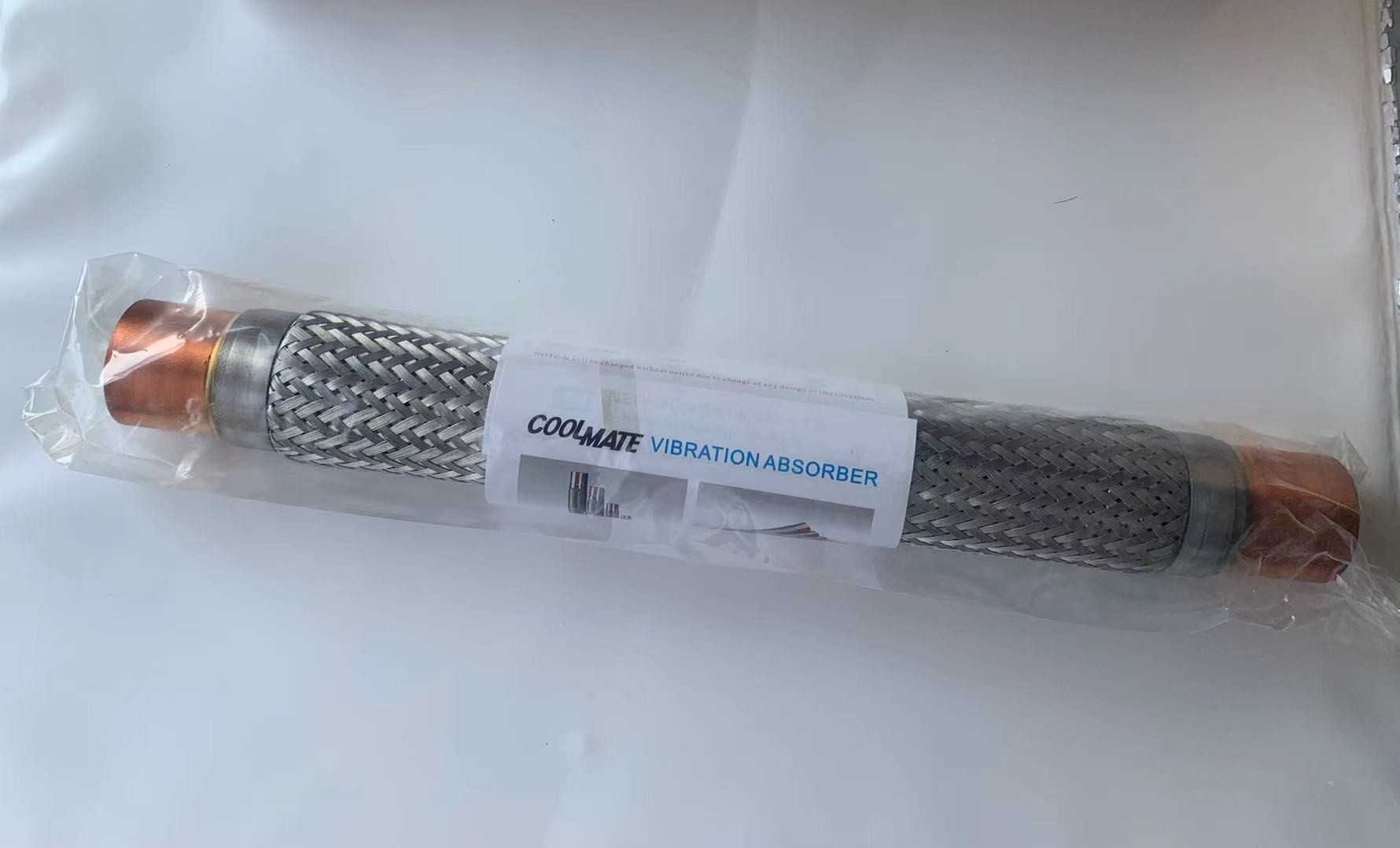

    · Donghae Vibration Eliminators hose is a welded assembly of corrugated metal hose, metal connector, braided metallic wire sleeve, metal clamping ring and red copper tube.


    · Donghae Vibration Eliminators hose is a vibration resistant connection piece to be used to prevent the piping from break caused by vibration.


    · Donghae Vibration Eliminatorshose is used on the suction piping and exhaust piping of a compressor in the refrigeration, cold storage and air conditioning unit.


    · Installation Mode: ODF connection soldering is used.


    Specifications:

    TypeSizeOutline DimensionMax.Working Pressure (MPa)Min.Bending Radius
    A L DStatic(Rj) Dynamic(Rd)
    VAS-0383/8162104.280180
    VAS-0121/2182304.295215
    VAS-0585/8202504.2120270
    VAS-034-3/4222604.2145325
    VAS-0787/8283004.2160360
    VAS-1001323304.2175400
    VAS-1181-1/8323304.2175400
    VAS-1141-1/4554003.5225510
    VAS-1381-3/8354003.5225510
    VAS-1581-5/8454002.5280640
    VAS-2182-1/8655202.5350800
    VAS-2582-5/8756102.0390845
    VAS-3183-1/8806802.04801000

    Technical Parameters:


    Applicable Refrigerants: HCFC/HFC

    Applicable Medium Temperature: -40℃~+150℃

    Maximum Working Pressure: refer to the table

    Maximum Proof Pressure: refer to the table


    Configuration:

    1,Copper bush; 2,Stainsteel bush; 3,Wave hose; 4,Net hose; 5,Clamping ring


    Donghae VAS stainless steel Suction Vibration Eliminator Refrigeration System Components


    Should you have any question, feel free to contact.
