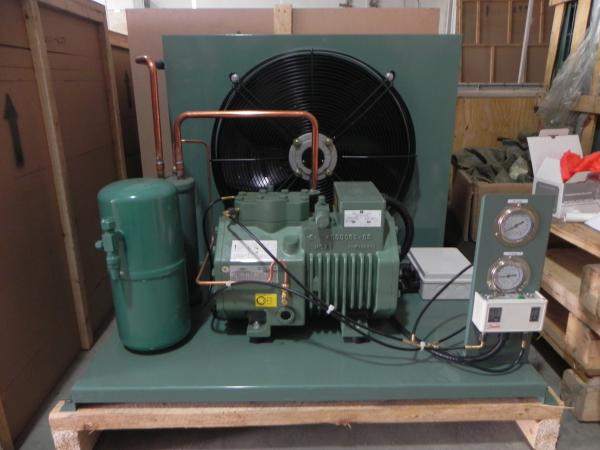

4CES 6Y 404a Condensing Unit cold storage refrigeration units

Ask Lasest Price
Brand Name :	reciprocating
Model Number :	4CES-6Y
Certification :	CE
Price :	Negotiates, based on quantity and components
Payment Terms :	T/T
Supply Ability :	500 sets per month
Delivery Time :	4-6 weeks

Add to Cart

Product Details
Company Profile

4CES 6Y 404a Condensing Unit cold storage refrigeration units

Air-Cooled Condensing Unit Cold Room Refrigeration System Equipment

1. Used for Freezer Room, Blast Freezer Room, Cold room , Cold storage refrigeration system, like fish chiller and freezer, beverage chiller, Meat chiller and Freezer etc.

2. Working range: Medium, high and low temperature range.

3. Evaporating temp : 5℃ to -15 ℃

4. Ambient temperature : 27℃ to 43 ℃

Air-Cooled Condensing Unit Features:

1. With brand semi-Hermetic compressor, cooling capacity horse power is from 2HP to 50HP.

2. Voltage : 380V/50Hz/3Ph , 440-480V/60Hz/3Ph.

3. Cooling Type: Air-cooled or Water-cooled

4. Used for wide range temperature, from 5℃ to -30 ℃, can used for high, medium and low temperature coldroom, storage freezer.

5. High efficiency, Good reliability, Low noise, Low vibration, No leakage.

6. The unit can be used for R134a, R404a, R407b and R407c gas.

7. Accessories: Danfoss or Emerson brand filter, pressure control, hand valve,solenoid valve, sight glass, vibration eliminator, oil separator,oil gauge, condenser with fan motor etc.

8 If need anticorrosion design, the condenser fin and screw fittings will use stainless steel for marine condition using

9.Reliable safety device : The compressor is equipped with motor protector and discharge temperature monitor to prevent the overheat of the motor and the compressor and the operation beyond approved application pressure.

Air-Cooled Condensing Unit Specifications:

Based on -15℃ evaporating temperature, 18℃ suction temperature , 0℃ K subcooling for the liquid refrigerant.

Temperature	Models	Cooling Capacity (HP)	Working Range
High temp	2HES-2Y	2HP	Chiller room
High temp	2GES-2Y	2HP	Chiller room
High temp	2FES-3Y	3HP	Chiller room
High temp	2EES-3Y	3HP	Chiller room
High temp	2DES-3Y	3HP	Chiller room
High temp	2CES-4Y	4HP	Chiller room
High temp	4FES-5Y	5HP	Chiller room
High temp	4EES-6Y	6HP	Chiller room
High temp	4DES-7Y	7HP	Chiller room
High temp	4CES-9Y	9HP	Chiller room
High temp	4VES-10Y	10HP	Chiller room
High temp	4TES-12Y	12HP	Chiller room
High temp	4PES-15Y	15HP	Chiller room
High temp	4NES-20Y	20HP	Chiller room
High temp	4HE-25Y	25HP	Chiller room
High temp	4GE-30Y	30HP	Chiller room
High temp	6HE-35Y	35HP	Chiller room
Low temp	2FES-2Y	2HP	Freezer room
Low temp	2EES-2Y	2HP	Freezer room
Low temp	2DES-2Y	2HP	Freezer room
Low temp	2CES-3Y	3HP	Freezer room
Low temp	4FES-3Y	3HP	Freezer room
Low temp	4EES-4Y	4HP	Freezer room
Low temp	4DES-5Y	5HP	Freezer room
Low temp	4CES-6Y	6HP	Freezer room
Low temp	4TES-9Y	9HP	Freezer room
Low temp	4PES-12Y	12HP	Freezer room
Low temp	4NES-14Y	14HP	Freezer room
Low temp	4HE-18Y	18HP	Freezer room
Low temp	4GE-23Y	23HP	Freezer room
Low temp	6HE-28Y	28HP	Freezer room
Low temp	6GE-34Y	34HP	Freezer room
Low temp	6FE-44Y	44HP	Freezer room

Packing: each unit with a separate plywood wooden case.
4CES 6Y 404a Condensing Unit cold storage refrigeration units

Should you have any question, feel free to contact.
