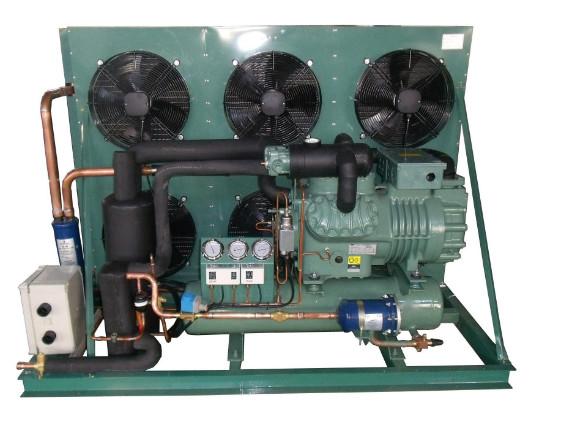

20HP Octagonal Air Cooled Refrigeration Unit 4NES-20Y Cold Storage Condenser

Ask Lasest Price
Brand Name :	Semi-hermetic
Model Number :	4NES-20Y
Certification :	CE
Price :	negotiate
Payment Terms :	T/T
Supply Ability :	500 sets per month
Delivery Time :	4-6 weeks

Add to Cart

Product Details
Company Profile

20HP Octagonal Air Cooled Refrigeration Unit 4NES-20Y Cold Storage Condenser

Brand Octagonal Semi-Hermetic Air-Cooled Refrigeration Units,4NES-20Y Air Cold Condensing Unit For Cold Storage

Octagonal series compressor, small installation space, universal, the lowest energy consumption and very smooth operation. Buzel semi-hermetic refrigeration compressor the same type of compressor can use R22, R404a, R502 refrigerant; large size suction nozzle; pressure oil lubrication. System, the use of two-way gear oil pump. COMPRESSOR OPTIONS: installed liquid supercooler, exhaust temperature protection sensor, crankcase heater, oil pressure protection switch.

Semi-hermetic refrigeration compressor can be used in a variety of operating conditions, very efficient and reliable, compact design, light weight, low cost. The compressor can be cooled by the Varicool suction as the booster stage and CIC DESIGN

Features:

1. low noise air cooled units energy regulation and start off unloading; built in check valves and safety valves; light weight, low vibration, low noise, small footprint.

2. low noise air-cooled unit motor protection device phase sequence, missing and start-up Delay Protection;

3. low noise air-cooled unit exhaust temperature, oil flow oil pressure protection for R22, R134a, R404a, R507 refrigerant;

4. low noise Air Cooling Unit each unit factory standard with computer controller, automatically adjust the running time of the compressor, extend the life of the compressor;

5. low noise air cooling unit is mainly used in places where the temperature requirement is-5 °c ~-20 °C, such as: food processing and storage, fruit and vegetable processing and fresh keeping, chemical industry, pharmaceutical industry, process ice water, air conditioning, etc. .

6. low noise air cooling units are widely used in fresh storage, cold storage, controlled atmosphere storage, low temperature workshop, process ice water and other places.

Specifications:

Based on -15℃ evaporating temperature and 18℃ suction temperature and 0℃ K subcooling for the liquid refrigerant.

Application	Model	Horse Power	Applicable coldroom
High temp	2HES-2Y	2HP	Chiller room
High temp	2GES-2Y	2HP	Chiller room
High temp	2FES-3Y	3HP	Chiller room
High temp	2EES-3Y	3HP	Chiller room
High temp	2DES-3Y	3HP	Chiller room
High temp	2CES-4Y	4HP	Chiller room
High temp	4FES-5Y	5HP	Chiller room
High temp	4EES-6Y	6HP	Chiller room
High temp	4DES-7Y	7HP	Chiller room
High temp	4CES-9Y	9HP	Chiller room
High temp	4VES-10Y	10HP	Chiller room
High temp	4TES-12Y	12HP	Chiller room
High temp	4PES-15Y	15HP	Chiller room
High temp	4NES-20Y	20HP	Chiller room
High temp	4HE-25Y	25HP	Chiller room
High temp	4GE-30Y	30HP	Chiller room
High temp	6HE-35Y	35HP	Chiller room
Low temp	2FES-2Y	2HP	Freezer room
Low temp	2EES-2Y	2HP	Freezer room
Low temp	2DES-2Y	2HP	Freezer room
Low temp	2CES-3Y	3HP	Freezer room
Low temp	4FES-3Y	3HP	Freezer room
Low temp	4EES-4Y	4HP	Freezer room
Low temp	4DES-5Y	5HP	Freezer room
Low temp	4CES-6Y	6HP	Freezer room
Low temp	4TES-9Y	9HP	Freezer room
Low temp	4PES-12Y	12HP	Freezer room
Low temp	4NES-14Y	14HP	Freezer room
Low temp	4HE-18Y	18HP	Freezer room
Low temp	4GE-23Y	23HP	Freezer room
Low temp	6HE-28Y	28HP	Freezer room
Low temp	6GE-34Y	34HP	Freezer room
Low temp	6FE-44Y	44HP	Freezer room

Packing: each unit with a separate plywood wooden case.
