    ZB ZF Copeland Refrigeration Compressor Unit Rotalock R404a Copeland Scroll

    Ask Lasest Price
    Brand Name : Emerson Copeland
    Model Number : ZB15KQE-TFD 2HP
    Certification : CE / CCC
    Price : negotiate
    Payment Terms : T/T
    Supply Ability : 500 sets per month
    Delivery Time : 4-6 weeks
    • Product Details
    • Company Profile

    ZB ZF Copeland Refrigeration Compressor Unit Rotalock R404a Copeland Scroll

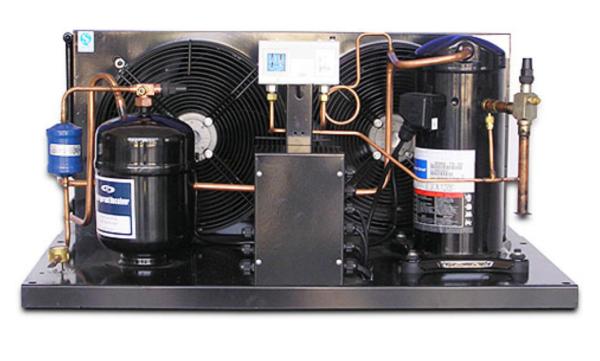

    ZB And ZF Copeland Refrigeration Compressor Unit Copeland Scroll Condensing Unit Cold Storage Refrigeration System


    Copeland scroll compressor, wind condenser, filter, sight glass, high and low pressure controller, the series above ZB58 and ZF will be equipped with oil separator, the ZF series is with diluent cooling valve.


    Can use R22, R404A, R134a as refrigerant, the refrigeration capacity is ranged from 2HP-15HP, the evaporating temperature is ranged from -40℃~10℃


    Description

    The low temperature small condensing units used for mini-freezers, supermarket freezers, medical freezers etc, use UAS Copeland compressors with high quality accessories to combine a refrigeration system.

    Features

    * Low temp condensing unit cooling capacity : 2HP
    * Low noise, steady
    * Superior efficiency
    * Availability for R404a
    * All voltage offering
    * Oil sight glass & Rotalock features

    Specifications


    Condensing unitDisplacementMax.Oper. CurrentFan QtyAir flowOverall DimensionTube ConnectionGross Weight
    m3/hANo.m3/hL (mm)W (mm)H (mm)SL incFL incKg
    ZB15KQE5.96.48142357006755053/4"3/8"65
    ZB19KQE6.86.58155807357005403/4"3/8"70
    ZB21KQE8.68358155807357005403/4"3/8"72
    ZB26KQE9.910.58155807357005403/4"3/8"76
    ZB29KQE11.411.85176207357008007/8"3/8"90
    ZB38KQE14.513.35176207357008007/8"3/8"98
    ZB45KQE17.216.95176207357008007/8"1/2"100
    ZB48KQE18.818.1621116011908008007/8"1/2"145
    ZB58KQE22.124.1621116011908007001 1/8"5/8"182
    ZB66KQE25.725.3621116011908007001 3/8"5/8"201
    ZB76KQE28.828.6021524014008008601 3/8"5/8"217
    ZB95KQE36.432.70222320162080012501 3/8"5/8"237
    ZB114KQE43.440.32222320119080012501 3/8"5/8"280
    ZSI09KQE8.042131505707004403/4"3/8"60
    ZSI11KQE9.953155807357005403/4"3/8"76
    ZSI15KQE14.373155807357005407/8"3/8"79
    ZSI18KQE17.066155807357005407/8"1/2"84
    ZSI21KQE20.91421116011908006501 1/8"5/8"176

    The theoretical displacement when the compressor revolving speed is 2900rpm.

    The maximum of the allowed lowest voltage (50Hz)
