    ZB38KQE 5HP ZB Copeland Hermetic Refrigeration Unit 14.5m3/h

    Ask Lasest Price
    Brand Name : Emerson Copeland
    Model Number : 5HP
    Certification : CE / CCC
    Price : negotiate
    Payment Terms : T/T
    Supply Ability : 500 sets per month
    Delivery Time : 4-6 weeks
    • Product Details
    • Company Profile

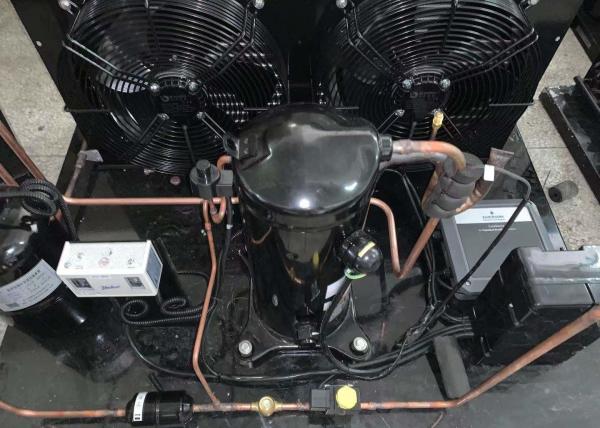

    ZB38KQE 5HP ZB Copeland Hermetic Refrigeration Unit 14.5m3/h

    ZB38KQE 5HP Emerson Copeland Hermetic Refrigeration Unit High Medium Temp Cold Room Condensing Unit


    Compressor: Copeland scroll ZB38KQE


    Capacity:5HP


    Refrigerant:R404a


    Voltage:380V/3PH/50HZ,460V/60Hz


    Temp range : 5℃ to -10℃


    Description


    The Copeland scroll air-cooled condensing unit should not be installed in the space with intense heat and high degree of wetness, and the air inlet should be kept away from the heat source also. Thsurrounding of the unit should remain enough space for the smooth air flow so as to avoid the happening of air short circuit.


    If the three phase scroll condensing unit is with the phase order and phase missing protector, then that can effectively prevent the compressor from the damage by its reverse and power missing.


    Features


    1. With fan speed regulator, to adjust condensing fan according to condensing temp.

    2. With operation data display function, to check operation current of compressor, discharge temp. and condensing temp.

    3. With system alarm function. When fault effects, the system will make alarm beep sound to remind user.

    4. The operation board can show temp. setting, defrosting control, operation system data checking and cold room temp. alarm functions. It can be installed apart from condensing units for remote control.


    Specifications


    Condensing unitDisplacementMax.Oper. CurrentFan QtyAir flowOverall DimensionTube ConnectionGross Weight
    m3/hANo.m3/hL (mm)W (mm)H (mm)SL incFL incKg
    ZB15KQE5.96.48142357006755053/4"3/8"65
    ZB19KQE6.86.58155807357005403/4"3/8"70
    ZB21KQE8.68358155807357005403/4"3/8"72
    ZB26KQE9.910.58155807357005403/4"3/8"76
    ZB29KQE11.411.85176207357008007/8"3/8"90
    ZB38KQE14.513.35176207357008007/8"3/8"98
    ZB45KQE17.216.95176207357008007/8"1/2"100
    ZB48KQE18.818.1621116011908008007/8"1/2"145
    ZB58KQE22.124.1621116011908007001 1/8"5/8"182
    ZB66KQE25.725.3621116011908007001 3/8"5/8"201
    ZB76KQE28.828.6021524014008008601 3/8"5/8"217
    ZB95KQE36.432.70222320162080012501 3/8"5/8"237
    ZB114KQE43.440.32222320119080012501 3/8"5/8"280
    ZSI09KQE8.042131505707004403/4"3/8"60
    ZSI11KQE9.953155807357005403/4"3/8"76
    ZSI15KQE14.373155807357005407/8"3/8"79
    ZSI18KQE17.066155807357005407/8"1/2"84
    ZSI21KQE20.91421116011908006501 1/8"5/8"176

    The theoretical displacement when the compressor revolving speed is 2900rpm.

    The maximum of the allowed lowest voltage (50Hz)
