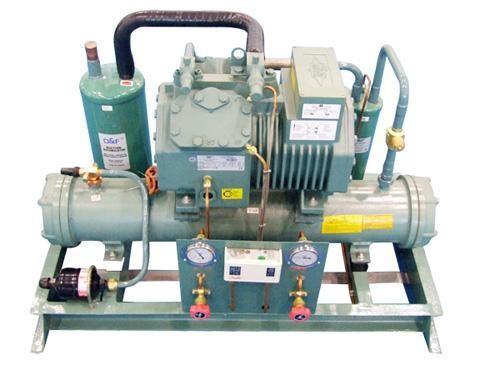

Germany 2DES-2Y (2HP) Water-Cooled Refrigertion Condensing Unit
Used For Chiller Storage Room
The compression condensing unit adopts shell-and-tube water-cooling
condensers, the heat transfer tubes are high-efficiency and
dense-ribbed copper tubes, the tube boxes at both ends can be
disassembled and replaced when necessary, so as to facilitate the
connection of the cooling water tubes, the unit can be matched with
the chocolate industry, ice cream industry, etc. .
Stable performance, high efficiency and energy saving. COMPRESSOR
FEATURES: With a durable valve design, high-quality wear-resistant
bearing components and easy maintenance, use and speed control,
smooth operation, and equipped with efficient, suction cooling
motor.
The octagonal machine series has a very compact design and more
stable operation characteristics. The 4J-13.2 compressor, for
example, uses an internal oil recovery system that has proven to be
efficient and reliable over the years.
brand Refrigeration Unit Features:
1. Euiped with original Germany brand new semi-Hermetic compressor,
Horse Power from 2HP to 50HP.
2. Voltage can be both 380V/50HZ/3Phase and 440-480V/60HZ/3PH.
3. Open type condensing unit, it is easy for installation and
maintenance.
4. Cooling Type: Water cooled ( can be air-cooled if needed).
5. Used for wide range temperature, from 5℃ to -30 ℃, can used for
high, medium and low temperature coldroom, storage freezer.
6. High efficiency, Good reliability, Low noise, Low vibration, No
leakage.
7. The unit can be used for R22, R134a, R404a, R407b and R407c
refrigerant (gas).
8. Excellent performance: The compressor has a scientific structure
design, strictly chosen material and precise procession and it is
strictly inspected. The factory has obtained the National
Compulsory Products CCC Certification, the National Industrial
Products Manufacture License, and the ISO9001:2008 International
Quality Supervision System Certification.
9. Accessories: all are world-famous brands, such as Danfoss brand
filter, pressure control, hand valve,solenoid valve, sight glass,
vibration eliminator, oil separator,oil gauge, condenser with fan
motor etc.(if need anticorrosion design, the condenser fin and
screw fittings will use stainless steel specifications)
10.Reliable safety device : The compressor is equipped with motor
protector and discharge temperature monitor to prevent the overheat
of the motor and the compressor and the operation beyond approved
application pressure.
Specifications:
Based on -15℃ evaporating temperature and 18℃ suction temperature
and 0℃ K subcooling for the liquid refrigerant.
| Temperature range | Model (R404) | Horse Power | Applicable coldroom |
| High temp | 2HES-2Y | 2HP | Chiller room |
| High temp | 2GES-2Y | 2HP | Chiller room |
| High temp | 2FES-3Y | 3HP | Chiller room |
| High temp | 2EES-3Y | 3HP | Chiller room |
| High temp | 2DES-3Y | 3HP | Chiller room |
| High temp | 2CES-4Y | 4HP | Chiller room |
| High temp | 4FES-5Y | 5HP | Chiller room |
| High temp | 4EES-6Y | 6HP | Chiller room |
| High temp | 4DES-7Y | 7HP | Chiller room |
| High temp | 4CES-9Y | 9HP | Chiller room |
| High temp | 4VES-10Y | 10HP | Chiller room |
| High temp | 4TES-12Y | 12HP | Chiller room |
| High temp | 4PES-15Y | 15HP | Chiller room |
| High temp | 4NES-20Y | 20HP | Chiller room |
| High temp | 4HE-25Y | 25HP | Chiller room |
| High temp | 4GE-30Y | 30HP | Chiller room |
| High temp | 6HE-35Y | 35HP | Chiller room |
| Low temp | 2FES-2Y | 2HP | Freezer room |
| Low temp | 2EES-2Y | 2HP | Freezer room |
| Low temp | 2DES-2Y | 2HP | Freezer room |
| Low temp | 2CES-3Y | 3HP | Freezer room |
| Low temp | 4FES-3Y | 3HP | Freezer room |
| Low temp | 4EES-4Y | 4HP | Freezer room |
| Low temp | 4DES-5Y | 5HP | Freezer room |
| Low temp | 4CES-6Y | 6HP | Freezer room |
| Low temp | 4TES-9Y | 9HP | Freezer room |
| Low temp | 4PES-12Y | 12HP | Freezer room |
| Low temp | 4NES-14Y | 14HP | Freezer room |
| Low temp | 4HE-18Y | 18HP | Freezer room |
| Low temp | 4GE-23Y | 23HP | Freezer room |
| Low temp | 6HE-28Y | 28HP | Freezer room |
| Low temp | 6GE-34Y | 34HP | Freezer room |
| Low temp | 6FE-44Y | 44HP | Freezer room |
Packing: each unit with a separate plywood wooden case.
