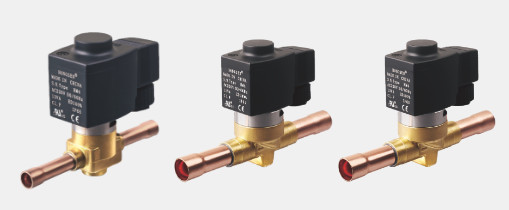

    HVH Piston Solenoid Valve R22 R407C Refrigeration Service Valves

    HVH Piston Series Solenoid Valve Of Refrigeration / Air Conditioning System,For Refrigeration Unit


    Description:


    * HVH piston type solenoid valve is a twice open-type solenoid valve to be suitable to one-way flow.


    * HVH piston type solenoid valve is used on the liquid, air suction and not vapor pipes of the refrigeration, cold storage and air conditioning facilities.


    * The coil of varies voltages is available for Model HVH piston type solenoid valve with a universal valve body.


    * HVH piston type solenoid valve could be supplied in whole or in split means the valve body and coil could be supplied separately.


    Specifications:


    ModelSize△P(bar)Max Operating Pressure(bar)Kv(㎥/h)
    Weld ConnectionMin.MOPD LiquidMOP
    HVH3-2T1/4ODF0.0531450.27
    HVH8-3T3/8ODF0.0531450.8
    HVH10-4T1/2ODF0.0531451.4
    HVH10-5T5/8ODF0.0531451.9
    HVH15-6T3/4ODF0.0531452.6
    HVH10-7T7/8ODF0.0531452.8

    1) Kv value: The flow rate (m³/h) of water of density 1t/m³ passing through the solenoid valve with the pressure differential of 100 KPa.

    2) The MOPD of gaseous medium is about 1 bar higher than that of liquid.


    ModelNominal Refrigerating Capacity kW
    LiquidAir SuctionHot Vapor
    R22/R407CR134aR404A/R507R22/R407CR134aR404A/R507R22/R407CR134aR404A/R507
    HVH35.405.003.80---------2.502.002.00
    HVH816.1014.8011.201.801.301.607.405.906.00
    HVH1038.2035.3026.704.303.103.9017.5013.9014.30
    HVH1552.3048.3036.5005.904.205.3024.0019.0019.60

    The working condition the nominal refrigerating capacity of liquid and air suction is as follows:


    Evaporation Temperature: te = -10℃;

    Liquid Temperature before Valve: t1 = +25℃;

    Pressure Drop after Solenoid Valve: △P = 15KPa


    The working condition the nominal refrigerating capacity of hot vapor is as follows:

    Condensation Temperature: tc = +40℃;

    Pressure Drop after Solenoid Valve: △P = 80KPa;

    Hot Vapor Temperature: th = +65℃;

    Liquid Refrigerant Overcooding: △t = 4K


    Technical Parameters:


    Applicable Refrigerants:HCFC or HFC(Customer apecified)
    Applicable Medium Temperature:-30℃~+140℃
    Application Ambient Temperature of Solenoid-40℃~+65℃
    Standard Voltage of SolenoidAC 380V,AC 220V/50Hz(Customer design is available)
    Allowable Voltage Fluctuation for Solenoid+10%~15%
    Connection of SolenoidStandard 3-wire insert connector
    HVH Piston Solenoid Valve R22 R407C Refrigeration Service Valves
