    120V 240V SKPS Pressure Controls 0.15Mpa - 3.45Mpa Well Pressure Switch

    Ask Lasest Price
    Brand Name : CNAU
    Model Number : SKPS series
    Certification : CE / UL
    Price : negotiate
    Payment Terms : T/T
    Supply Ability : 2000pcs per week
    Delivery Time : 4-6 weeks
    • Product Details
    • Company Profile

    120V 240V SKPS Pressure Controls 0.15Mpa - 3.45Mpa Well Pressure Switch

    SKPS Pressure Controls, Pressure Switch For Refrigeration System,Condensing Unit,Refrigeration Unit,Cooling Equipments


    Description:

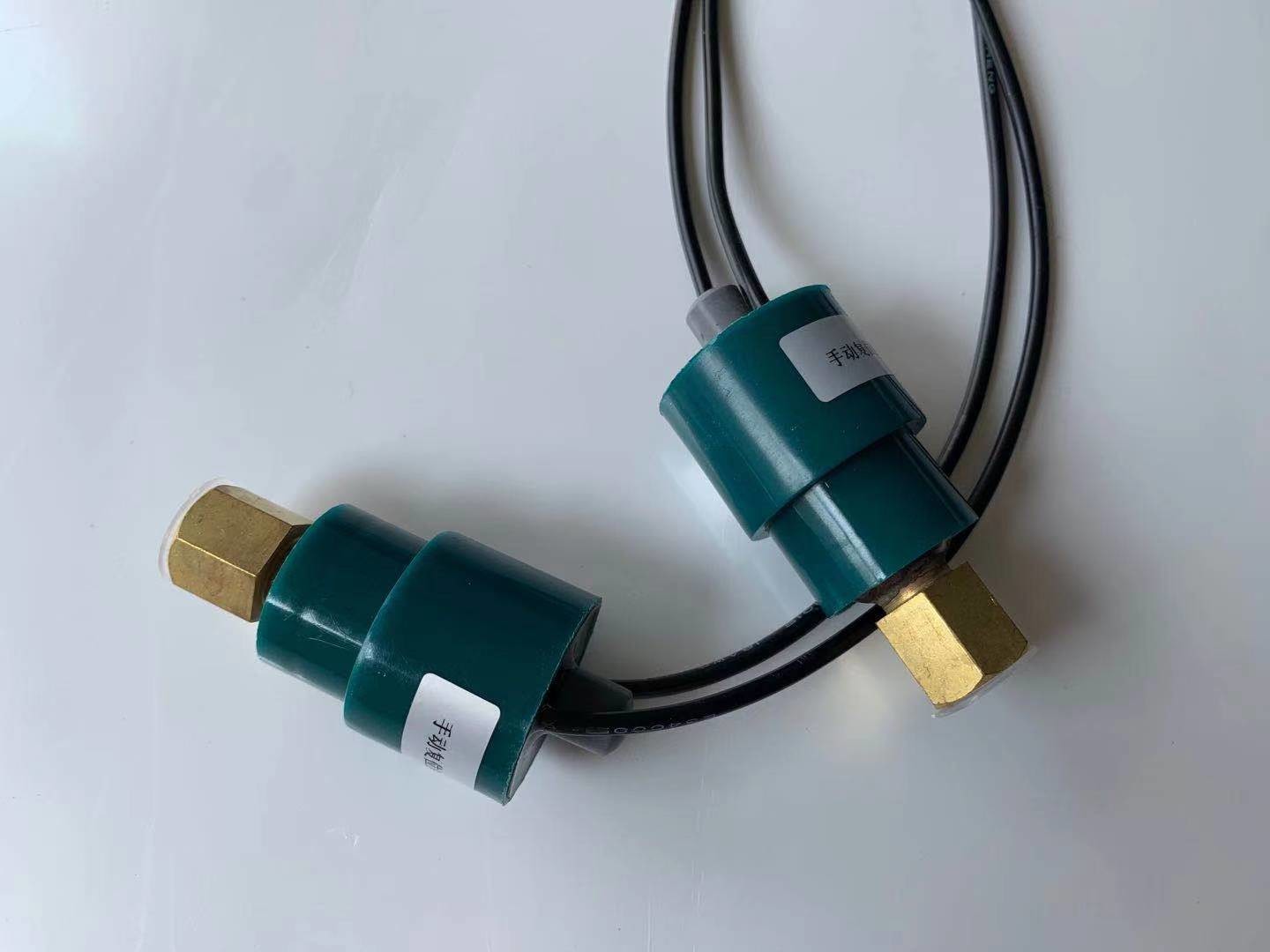

    SKPS series pressure switches


    SKPS series pressure controls are a kind of advanced subminature pressure switches, making the control circuit closed or not according to the pressure variation of the controlled medium, which are widely used by all kinds of air conditions, refrigeration set and other industrial apparatus that need to adjust the pressure of the controlled medium to protect the pressure system automatically.


    Technical parameter:

    Pressure switch over value0.15Mpa - 3.45 Mpa , can customized
    Adaptable ambient temp-35℃ - 120 ℃
    Electric rated value120/240V etc, can customized
    Endurance100000 times
    Compression resistancecontact to contact 750Vrms, contact to crust 1500Vrms

    120V 240V SKPS Pressure Controls 0.15Mpa - 3.45Mpa Well Pressure Switch

    SKPS (M) series manual reset switches

    120V 240V SKPS Pressure Controls 0.15Mpa - 3.45Mpa Well Pressure Switch


    There is nuance between the principle of SKPS (M) series manual reset switches and the principle of SKPS series pressure switches. When the pressure of controlled medium depresses, this series switches can't reset automatically and keeps the changed state all the time. As long as the reset button is pressed. the SKPS (M) series manual reset switches will be original state.


    Technical parameter:

    Pressure switch over value0.15Mpa - 3.45 Mpa , can customized
    Adaptable ambient temp-35℃ - 120 ℃
    Electric rated value120/240Vac,375VA; 28Vac,2A 120 Vac etc, can customized
    Endurance100000 times
    Compression resistancecontact to contact 750Vrms, contact to crust 750Vrms

    We can customize this kind of pressure switches. If you have any special specification, feel free to contact.
