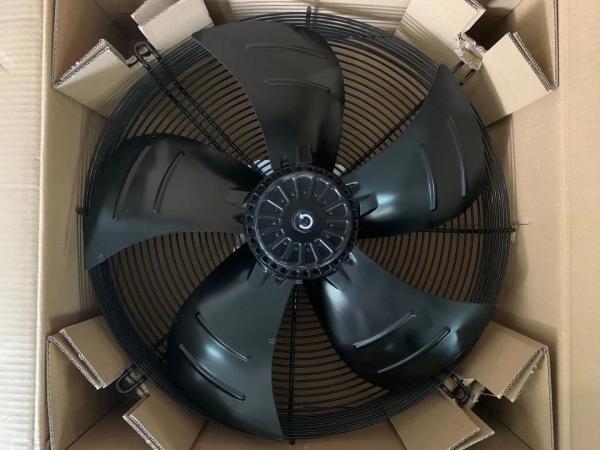

    500mm Axial Fan Motors YWF4E-500S-137/35-G 220V 50Hz 380W

    Ask Lasest Price
    Brand Name : Weiguang
    Model Number : YWF4E-500S-137/35-G
    Certification : CE
    Price : negotiate
    Payment Terms : T/T
    Supply Ability : 2000pcs per week
    Delivery Time : 4-6 weeks
    • Product Details
    • Company Profile

    500mm Axial Fan Motors YWF4E-500S-137/35-G 220V 50Hz 380W

    Weiguang Axial Fan Motors YWF4E-500S-137/35-G 220V 50Hz


    General Information and Features

    1. YWF series motors are shaded pole motors with single phase, 4 shaded poles and running at rated voltage of 220-240V,50/60Hz or 110-120V,60Hz. They are widely used in the radiator, evaporator and other refrigeration equipment.


    2. The output power is from 5W to 34W, which is relative to the stack length.


    3. The insulation class of motors is B, and the protection class of that is IP42. On request IP44 is available.


    4. The motors are protected by their impedance for output power below 10W and thermal protector with cut-off temperature of 135℃+5℃ for outpower above 10W.


    5. The applicable ambient temperature is from -30℃ to +50℃.


    6. Because our standard motors adopt sleeve bearing, we suggest installing these motors horizontally. On request motors can be furnished with ball bearings.


    7. The average service life of motors is over 20000 hours.


    8. These shaded pole motors passed CE,VED,UL and CCC approval.



    Ordering Specifications as follows

    ModelVoltage (V)Frequency (Hz)Current (A)Power Input (W)Speed (r/min)Air Volume (m2/h)Noise Level (Dba)
    YWF2D-250380500.31002650180060
    YWF2E-250220500.551002500180060
    YWF4D-250380500.2701400146055
    YWF4E-250220500.3701400146055
    YWF2D-300380500.351402550280060
    YWF2E-300220500.651402530280060
    YWF4D-300380500.24801380183158
    YWF4E-300220500.4801380174358
    YWF4D-330380500.31001300255062
    YWF4E-330220500.51001300255062
    YWF4D-350380500.41501380317062
    YWF4E-350220500.71501380297662
    YWF6D-350380500.3590920210056
    YWF6E-350220500.4290920200056
    YWF4D-400380500.51801380450068
    YWF4E-400220500.81801380440068
    YWF6D-400380500.38110920320058
    YWF6E-400220500.5110920320058
    YWF4D-450380500.62501360560068
    YWF4E-450220501.22501350550768
    YWF6D-450380500.4150920460060
    YWF6E-450220500.8160920460060
    YWF4D-500380500.94501300624672
    YWF4E-500220501.854201300604672
    YWF6D-500380500.6230900580068
    YWF6E-500220501.2230900580068
    YWF4D-550380501.26001300848775
    YWF4E-550220502.45001300826875
    YWF6D-550380500.8330900650970
    YWF6E-550220501.7330900634870
    YWF4D-600380501.683013501250078
    YWF4E-60022050365013001050078
    YWF6D-600380501.5520900940072
    YWF6E-600220502.4520900940072
    YWF4D-630380501.888013201300078
    YWF4E-630220503.270013001100078
    YWF6D-630380501.6560900950075
    YWF6E-630220502.5560900950075

    500mm Axial Fan Motors YWF4E-500S-137/35-G 220V 50Hz 380W


    Should you have any question, feel free to contact http://www.commercialcoldroom.com/contactus.html
