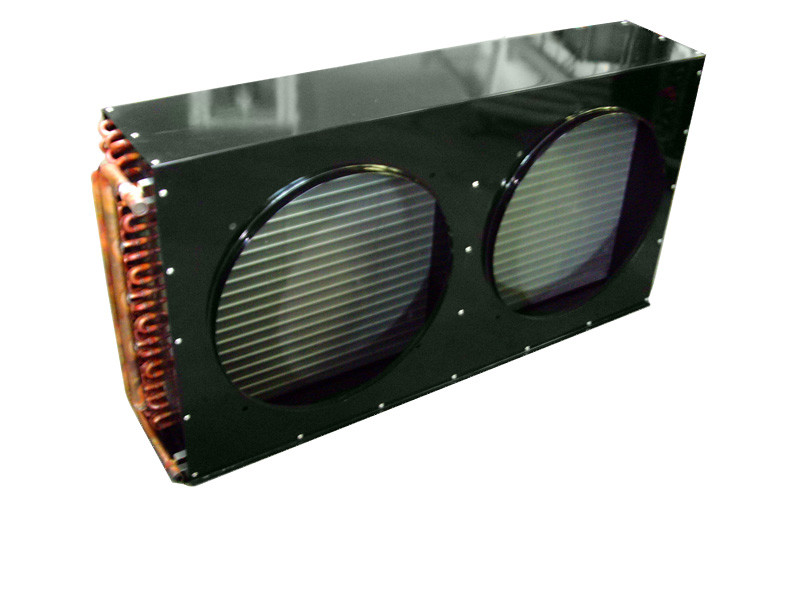

    Copper Air Cooled Condenser Welding Connection For Refrigeration Units

    Ask Lasest Price
    Brand Name : CNAU
    Model Number : CA series
    Certification : CE / UL
    Price : negotiate
    Payment Terms : T/T
    Supply Ability : 2000pcs per week
    Delivery Time : 4-6 weeks
    • Product Details
    • Company Profile

    Copper Air Cooled Condenser Welding Connection For Refrigeration Units

    Customized Air-Cold Condensers For Refrigeration Units,Condensing Units And Cooling Equipment, Chiller And Freezer Room


    Features


    1. Adopt high-efficiency heat exchange coil.


    2. The Shell is treated with spray paint, anticorrosive and durable


    3. Aluminum foil: Hydrophilic or bare


    4. With Axial Fan, large air volume, low noise, power saving


    5 Fin spacing: 1.8-3.5mm


    6. Pass 2.8MPa nitrogen pressure leak test


    7. Used in refrigeration or cold storage


    Specifications


    Model

    Capactiy

    Exchange

    (KW)

    Surface Area

    (㎡)

    Fan motor quantity

    Air Inlet size

    (mm )

    Liquid outlet size

    (mm)

    Fan diameter (mm)Air volume (m3/ h)Powder ( W)

    FNA- 0.25/1.0

    0.2511x 150400339.529.52
    FNA- 0.25/1.10.251.11x 150400339.529.52
    FNA- 0.25/1.20.251.21x 150400339.529.52
    FNA- 0.25/1.30.251.31x 150400339.529.52
    FNA- 0.8/3.40.803.41x 200500409.529.52
    FNA- 1.0/4.41.004.41x 250800551212.7
    FNA- 1.2/.5.41.205.41x 30012509012.712.7
    FNA- 1.6/8.41.608.41x 30012509012.712.7
    FNF- 1.8/9.81.809.81x 3001250901616
    FNF- 2.5/11.32.5011.31x 35018001501616
    FNF- 2.8/132.80131x 35018001501616
    FNF- 4.4/16.54.4016.51x 35018001501616
    FNF- 5.5/205.50201x 40030001902216
    FNF- 6.0/226.50221x 40030001902216
    FNF- 7.2/267.80262x 3502x 18002x 1501616
    FNF- 8.8/308.80302x 4002x 30002x 1902216
    FNF- 9.0/4210.80422x 4002x 30002x 1902216
    FNF- 10.2/5014.00502x 4002x 30002x 1902216
    FNF- 15.2/5315.00532x 4002x 30002x 1902216
    FNF- 19.0/6319.00632x 4002x 30002x 1902216
    FNF- 21.5/7522.00752x 4002x 30002x 1902216
    FNF- 24.2/8824.20884x 4004x 30004x 1902219
    FNF- 36.0/13036.001304x 4004x 30004x 1902219
    FNF- 42.0/15042.001504x 4004x 30004x 1903228
    FNF- 50.0/18050.001804x 5004x 60004x 4203228.
    FNF- 60.0/21060.002104x 5004x 60004x 4203228

    Copper Air Cooled Condenser Welding Connection For Refrigeration Units
