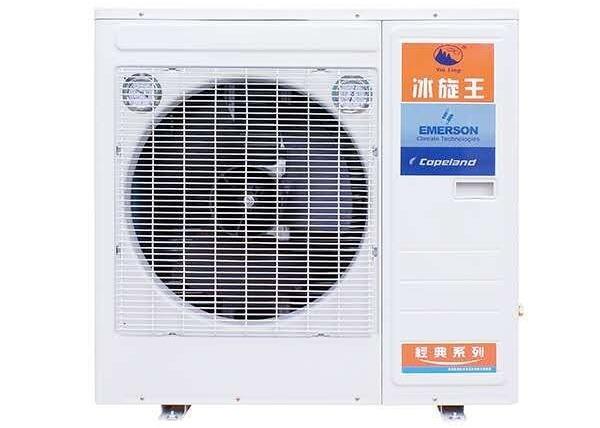

    2HP 7HP Copeland Air Cooled Condensing Unit 60W Fan Cold Room Condensing Unit

    Ask Lasest Price
    Brand Name : Copeland semi-hermetic
    Model Number : 5HP
    Certification : CE / CCC
    Price : negotiate
    Payment Terms : T/T
    Supply Ability : 500 sets per month
    Delivery Time : 4-6 weeks
    • Product Details
    • Company Profile

    2HP 7HP Copeland Air Cooled Condensing Unit 60W Fan Cold Room Condensing Unit

    2-7HP Copeland Box Type Air-Cooled Refrigeration Unit,Copeland Condensing Unit For Chiller, Freezer Room, Cold Storage


    Compressor:Copeland scroll ZB series

    Capacity:2-7HP

    Refrigerant:R22/R404a

    Voltage:380V/3PH/50HZ

    Low noise, Energy saving, Easy installation,Copeland scroll compressor


    Description


    This series products with copeland scroll hermetic compressor and control box,applicable to cold display cases, cold storage rooms, ice producers etc. The applicable temperature ranges are: -5℃~ 15℃, -15℃~5℃ and -15~-20℃. They can be widely used in hotels, restaurants, medicines, agricultural, chemicals industries all other place where cold storage is needed


    Features

    1. Electric components :main control board, cold room temp control board and operation board.

    2. With multi protections :phase protection, phase lack, over current, too constant start of compressor, discharge temp and system high/low temp.

    3. With fan speed regulator, to adjust condensing fan according to condensing temp.

    4. With operation data display function, to check operation current of compressor, discharge temp. and condensing temp.

    5. With system alarm function. When fault effects, the system will make alarm beep sound to remind user.

    6. The operation board can show temp. setting, defrosting control, operation system data checking and cold room temp. alarm functions. It can be installed apart from condensing units for remote control.


    Model2HP3HP4HP5HP
    Room temperature ( ℃)5℃ ~15 ℃
    Power supply380V/3Ph/50 HZ
    RefrigerantR404
    Compressor modelZB15KQEVR34KFEVR48KSEVR61KFE
    CondenserFan Qty1122
    Fan Voltage(V)220220220220
    Fan Input(W)606060×260×2
    Capacity. & inputTe 5℃Cap(W)577084001130014000
    input(W)1560230029303700
    Te 0℃Cap(W)48307020943011700
    input(W)1540227028903660
    PipeGas dia(mm)φ19φ19φ19φ19
    Liquid dia(mm)φ10φ10φ12φ12
    Overall sizesL (mm)1020102010201020
    W (mm)420420420420
    H (mm)84084012401240
