2HES-2Y Air Cooled Condensing Unit R404a 2HP Refrigeration Unit For Cold Room

Ask Lasest Price
Brand Name :	Brand
Model Number :	2HES-2Y
Certification :	CE
Price :	negotiate
Payment Terms :	T/T
Supply Ability :	500 sets per month
Delivery Time :	4-6 weeks

Add to Cart

Product Details
Company Profile

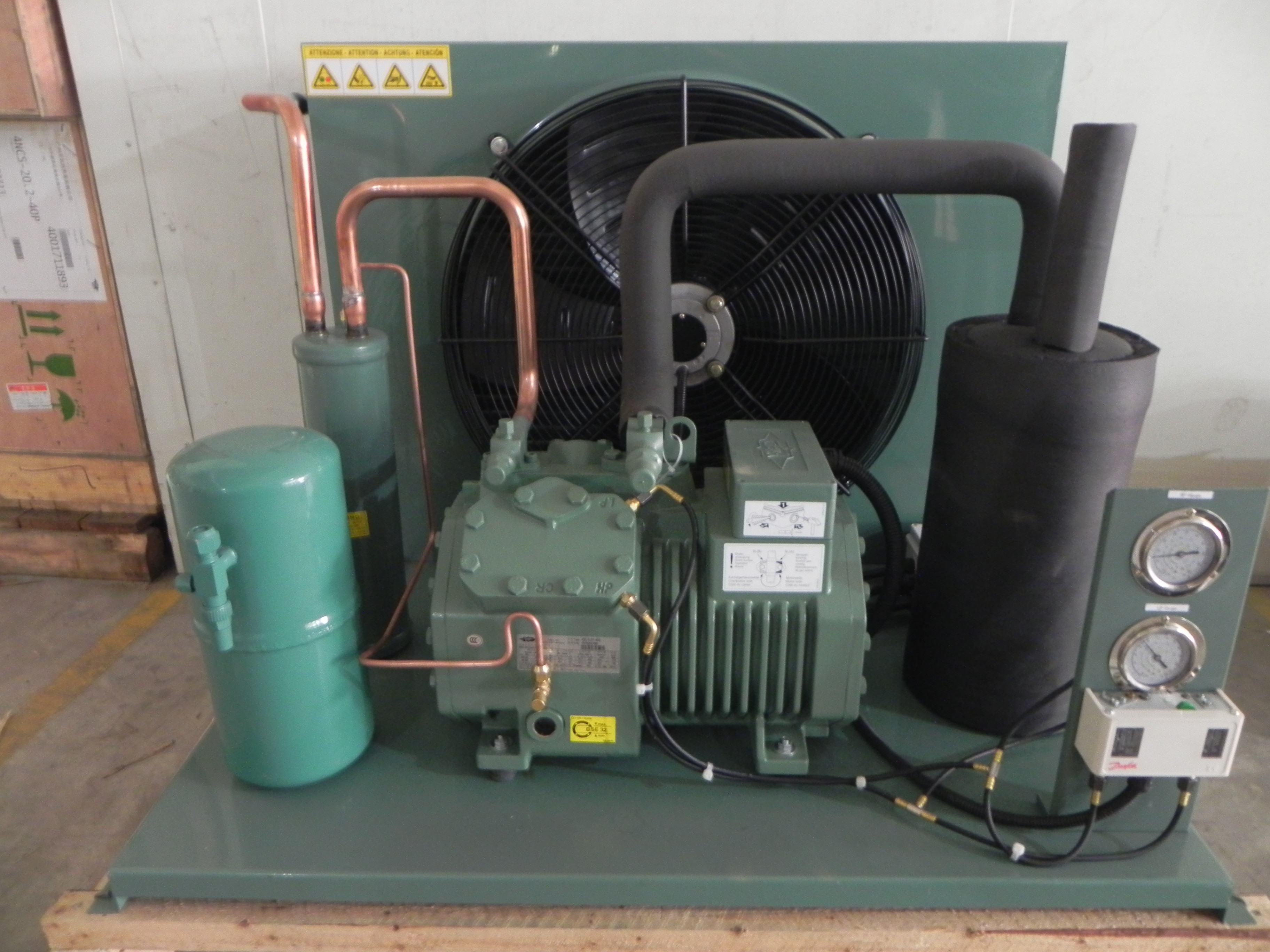

2HES-2Y Air Cooled Condensing Unit R404a 2HP Refrigeration Unit For Cold Room

2HES-2Y Air Cooled Condensing Unit For Walk In Chiller Room R404a 2 Horse Power 2630W Cooling Capacity

1. Used for walk in chiller room and walk in freezer room, like vegetable chiller, beverage chiller, Meat freezer, fish freezer etc.
2. It ismedium and low emperature range.
3. The evaporating temperature from 5℃ to -30 ℃
4. The ambient temperature from 27℃ to 43 ℃
5. The cooling capacity is 2630W (based on evaporating temperature -10℃ and ambient temperature 43 ℃)

brand Refrigeration Unit Features:

1. semi-Hermetic compressor, Horse Power from 2HP to 50HP.

2. Voltage 380V/50HZ/3Phase or 440-480V/60HZ/3PH.

3. Open type refrigeration unit, it is easy for maintenance.

4. Cooling Type: Air-cooled, (or water-cooled if needed), can be customized as your specifications.

5. Used for wide range temperature, from 5℃ to -30 ℃, can used for medium and low temperature coldroom, storage freezer.

6. High efficiency, best reliability, low noise, low vibration, no leakage.

7. The unit can be used forR134a, R404a, R407b and R407c refrigerant (gas).

8. Excellent performance.

9. Condensing unit accessories: brands parts, such as Danfoss brand filter, pressure control, hand valve,solenoid valve, sight glass, vibration eliminator, oil separator,oil gauge, condenser with fan motor etc.(if need anticorrosion design, the condenser fin and screw fittings will use stainless steel specifications)

10. Reliable safety fittings : The compressor is equipped with motor protector and discharge temperature monitor to prevent the overheat of the motor and the compressor and the operation beyond approved application pressure.

Specifications:

Based on -15℃ evaporating temp. and 18℃ suction temp. and 0℃ K subcooling for the liquid refrigerant.

Application	Model	Horse Power	Applicable coldroom
High temp	2HES-2Y	2HP	Chiller room
High temp	2GES-2Y	2HP	Chiller room
High temp	2FES-3Y	3HP	Chiller room
High temp	2EES-3Y	3HP	Chiller room
High temp	2DES-3Y	3HP	Chiller room
High temp	2CES-4Y	4HP	Chiller room
High temp	4FES-5Y	5HP	Chiller room
High temp	4EES-6Y	6HP	Chiller room
High temp	4DES-7Y	7HP	Chiller room
High temp	4CES-9Y	9HP	Chiller room
High temp	4VES-10Y	10HP	Chiller room
High temp	4TES-12Y	12HP	Chiller room
High temp	4PES-15Y	15HP	Chiller room
High temp	4NES-20Y	20HP	Chiller room
High temp	4HE-25Y	25HP	Chiller room
High temp	4GE-30Y	30HP	Chiller room
High temp	6HE-35Y	35HP	Chiller room
Low temp	2FES-2Y	2HP	Freezer room
Low temp	2EES-2Y	2HP	Freezer room
Low temp	2DES-2Y	2HP	Freezer room
Low temp	2CES-3Y	3HP	Freezer room
Low temp	4FES-3Y	3HP	Freezer room
Low temp	4EES-4Y	4HP	Freezer room
Low temp	4DES-5Y	5HP	Freezer room
Low temp	4CES-6Y	6HP	Freezer room
Low temp	4TES-9Y	9HP	Freezer room
Low temp	4PES-12Y	12HP	Freezer room
Low temp	4NES-14Y	14HP	Freezer room
Low temp	4HE-18Y	18HP	Freezer room
Low temp	4GE-23Y	23HP	Freezer room
Low temp	6HE-28Y	28HP	Freezer room
Low temp	6GE-34Y	34HP	Freezer room
Low temp	6FE-44Y	44HP	Freezer room

2HES-2Y Air Cooled Condensing Unit R404a 2HP Refrigeration Unit For Cold Room

Packing: each unit with a separate plywood wooden case.

Any question, feel free to contact.
