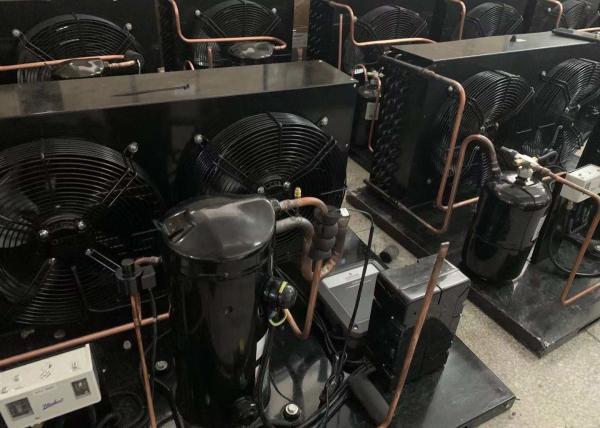

    ZB45KQE 6HP ZB Copeland Scroll Condensing Unit For Cold Storage

    ZB45KQE 6HP Copeland Scroll ZB Condensing Unit High Medium Temp Cold Room Refrigeration Unit


    Compressor: Copeland scroll ZB45KQE


    Capacity:6HP


    Refrigerant:R404a


    Voltage:380V/3PH/50HZ,460V/60Hz


    Temp range : 5℃ to -10℃


    Description


    The compressor reversing of the Copeland scroll unit is not allowed. After the running of the economic type unit with three-phase charge, if the noise is too loud, the sniffer tube is not cold and the exhaust pipe is not hot, then the unit must be turn off to check for the possibility of compressor reversing.


    If the 3 phase scroll condensing unit is with phase order and phase missing protector, then that can effectively prevent the compressor from the damage by its reverse and power phase missing.


    Features


    1. With fan speed regulator, to adjust condensing fan according to condensing temp.

    2. With operation data display function, to check operation current of compressor, discharge temp. and condensing temp.

    3. With system alarm function. When fault effects, the system will make alarm beep sound to remind user.

    4. The operation board can show temp. setting, defrosting control, operation system data checking and cold room temp. alarm functions. It can be installed apart from condensing units for remote control.


    Specifications


    Condensing unitDisplacementMax.Oper. CurrentFan QtyAir flowOverall DimensionTube ConnectionGross Weight
    m3/hANo.m3/hL (mm)W (mm)H (mm)SL incFL incKg
    ZB15KQE5.96.48142357006755053/4"3/8"65
    ZB19KQE6.86.58155807357005403/4"3/8"70
    ZB21KQE8.68358155807357005403/4"3/8"72
    ZB26KQE9.910.58155807357005403/4"3/8"76
    ZB29KQE11.411.85176207357008007/8"3/8"90
    ZB38KQE14.513.35176207357008007/8"3/8"98
    ZB45KQE17.216.95176207357008007/8"1/2"100
    ZB48KQE18.818.1621116011908008007/8"1/2"145
    ZB58KQE22.124.1621116011908007001 1/8"5/8"182
    ZB66KQE25.725.3621116011908007001 3/8"5/8"201
    ZB76KQE28.828.6021524014008008601 3/8"5/8"217
    ZB95KQE36.432.70222320162080012501 3/8"5/8"237
    ZB114KQE43.440.32222320119080012501 3/8"5/8"280
    ZSI09KQE8.042131505707004403/4"3/8"60
    ZSI11KQE9.953155807357005403/4"3/8"76
    ZSI15KQE14.373155807357005407/8"3/8"79
    ZSI18KQE17.066155807357005407/8"1/2"84
    ZSI21KQE20.91421116011908006501 1/8"5/8"176

    The theoretical displacement when the compressor revolving speed is 2900rpm.

    The maximum of the allowed lowest voltage (50Hz)
